GF-5 (GaoFen-5)

Homepage» System » Satellite Imageries » GF-5 (GaoFen-5)

GF-5 is the first satellite in the world to observe both land and atmosphere simultaneously. It was launched in May 2018 and carried with six payloads for the first time. GF-5 possesses the first hyperspectral camera with features of both wide spectral band in the world.

GF-5 can effectively detect the inland water bodies, land surface ecological environment, eroded minerals, rock, and mineral categories, and also provide good quality and high reliability of hyperspectral data for environmental monitoring, resource exploration, disaster prevention, and mitigation, and other industries.

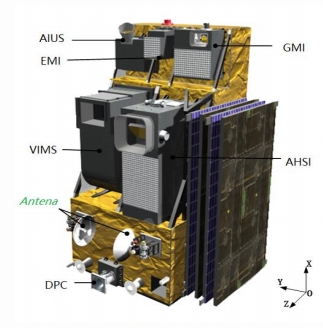

The instruments are:

  • Advanced Hyperspectral Imager (AHSI)
  • Visual and Infrared Multispectral Sensor (VIMS)
  • Greenhouse-gases Monitoring Instrument (GMI)
  • Atmospheric Infrared Ultraspectral (AIUS)
  • Environment Monitoring Instrument (EMI)
  • Directional Polarization Camera (DPC)


GAOFEN-5 TECHNICAL SPECIFICATIONS:



Item



Parameter

Atmospheric trace gases differential

optical absorption spectrometer

(EMI)

Spectral range

240~315 nm

311~403 nm

401~550 nm

545~710 nm

Spectral

resolution

0.3~0.5 nm

Spatial

resolution

48(Trajectory direction )* 13 km

(Along-track direction )

Major greenhouse atmospheric gas

detector

(GMI)

Central  wavelength

0.765  μm

1.575 μm

1.65  μm

2.05  μm

Spectral range

0.759~0.769  μm

1.568~1.583  μm

1.642~1.658  μm

2.043~2.058 μm

Spectral

resolution

0.6 cm

0.27 cm


          Multi-angle polarization
         atmospheric detector
                    (DPC)



Spectral range

433~453 nm

480~500 nm(P)

555~575 nm

660~680 nm(P)

758~768 nm

745~785 nm

845~885 nm(P)

900~920 nm

Spatial  resolution

 ≥3.5  km



Atmospheric Infrared Ultra-spectral  Sounder

(AIUS)

Spectral range

750~4100 cm(2.4~13.3 μm)

Spectral  resolution

 0.03 cm



Atmospheric visible-shortwave infrared  Hyperspectral Imager

(AHSI)

Spectral range

0.4~2.5  μm

Spatial  resolution

30 m

Swath width

60 km

Spectral  resolution

VNIR:5 nm  SWIR:10 nm


Full-spectrum spectral imager

(VIMS)

Spectral range

0.45~0.52 μm

0.52~0.60 μm

0.62~0.68 μm

0.76~0.86 μm

1.55~1.75 μm

2.08~2.35 μm

3.50~3.90 μm

4.85~5.05 μm

8.01~8.39 μm

8.42~8.83 μm

10.3~11.3 μm

11.4~12.5 μm



Spatial  resolution

20 m(0.45~2.35 μm)

40 m(3.5~12.5 μm)

Swath width

60 km
